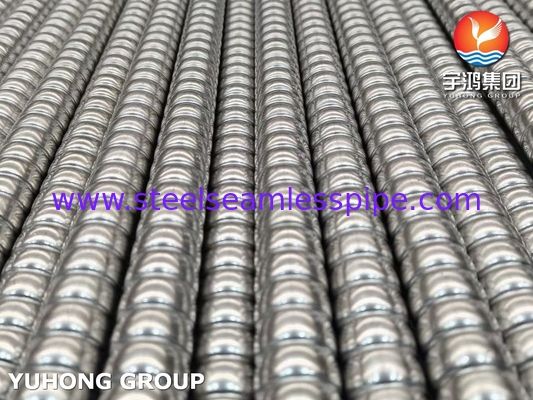

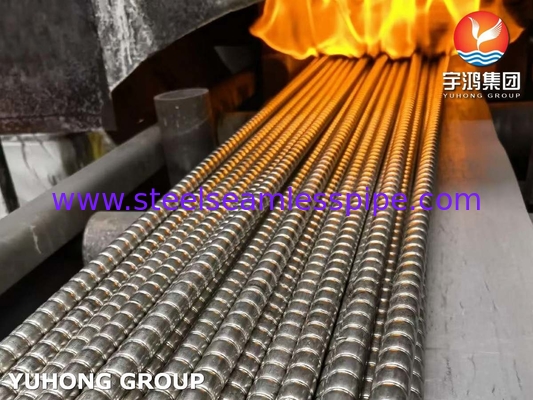

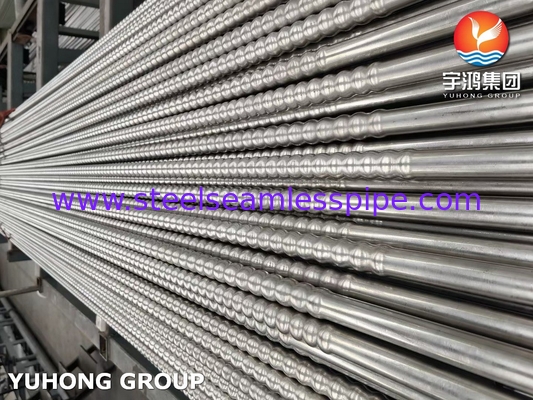

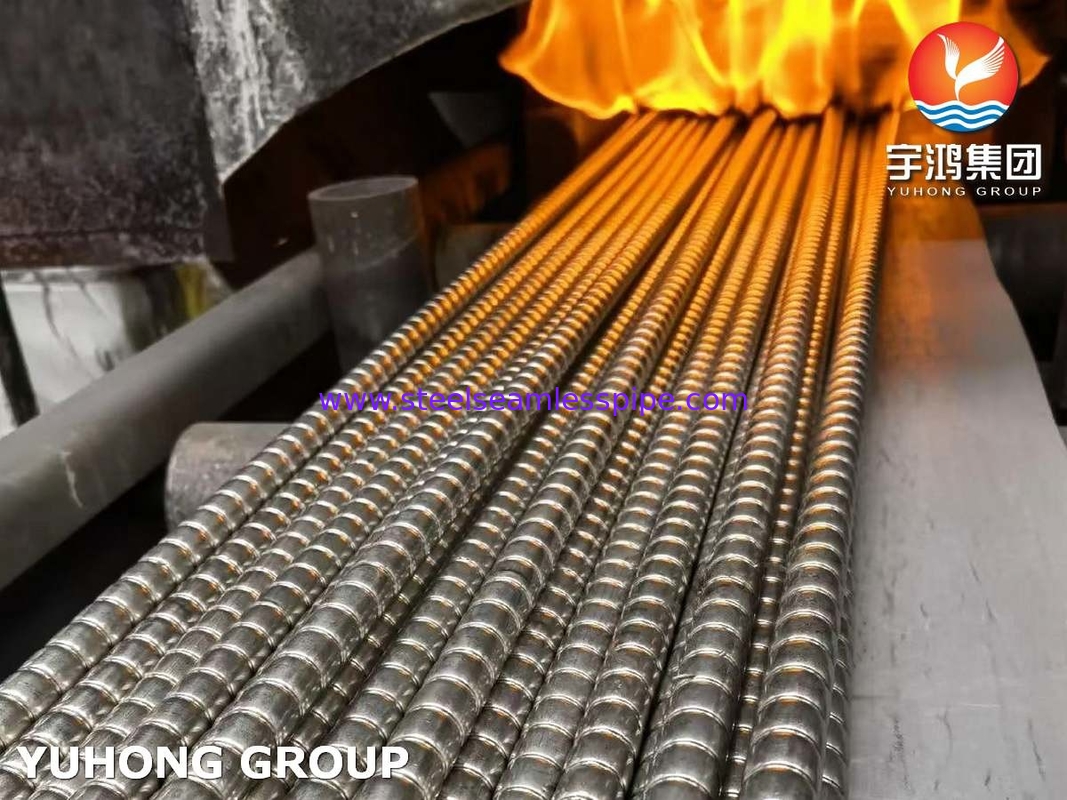

ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger

ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger

  • ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
  • ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
  • ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger
Dettagli:
Luogo di origine: Cina
Marca: YUHONG
Certificazione: ASME , ABS , DNV-GL , BV , LR , KR , CCS , PED , TUV , ISO9001 , AD2000
Numero di modello: TP310S
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000 kg
Prezzo: Negoziabile
Imballaggi particolari: Cassa a telaio in ferro
Tempi di consegna: Dipende dalla Quantità
Termini di pagamento: L/C, T/T
Capacità di alimentazione: Secondo i requisiti del cliente
Contatto
Descrizione di prodotto dettagliata
Applicazione: scambiatori di calore STABELLO: SA312 / ASTM A312
Certificato: ABS, DNV-GL, BV, LR, KR, CCS, PED, TUV, ISO9001, AD2000 Tipo: Tubi a pinna ondulati
Evidenziare:

ASME SA312 Corrugated Fin Tube

,

Heat Exchanger Corrugated Fin Tube

,

ASTM A312 Corrugated Fin Tube

ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube , For Heat Exchanger





ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube is a high-performance heat exchanger tube widely used in industries requiring effective heat transfer and resistance to high-temperature environments. Below is a detailed overview of its properties, benefits, applications, and features.





Key Material Characteristics:

  • Grade: TP310S (UNS S31008)
  • Composition: High levels of chromium (24-26%) and nickel (19-22%), with lower carbon content compared to TP310, which enhances weldability and reduces carbide precipitation.
  • Standards: Manufactured in accordance with ASME SA312 or ASTM A312 specifications for seamless or welded stainless steel pipes.

The corrugated fin design enhances surface area, promoting efficient heat transfer in heat exchanger systems.





Corrugated Fin Design Features:

  • Enhanced Heat Transfer: Increased surface area and improved fluid dynamics lead to superior thermal performance.
  • Compact Design: Allows for smaller heat exchangers with higher efficiency.
  • Customizable Geometry: Corrugation patterns can be tailored to specific applications.





Key Properties of TP310S Corrugated Fin Tube

  • High-Temperature Resistance:
    • Withstands temperatures up to 1100°C (2012°F) in oxidizing environments.
    • Excellent creep resistance under high thermal stress.
  • Corrosion Resistance:
    • Exceptional resistance to oxidation, carburization, and sulfidation.
    • Suitable for environments with aggressive chemicals and high moisture.
  • Mechanical Strength:
    • High tensile and yield strength, maintaining structural integrity under extreme conditions.
  • Thermal Conductivity:
    • Optimized for efficient heat transfer due to the corrugated fin structure.





Applications

  • Petrochemical Industry: Heat recovery systems, catalytic reformers.
  • Power Generation: Boilers, superheaters, economizers.
  • Chemical Processing: Heat exchangers in corrosive chemical environments.
  • Fertilizer Plants: Ammonia and urea production systems.
  • Food Processing: High-temperature heat exchangers with hygienic requirements.





Benefits

  • High Temperature Durability: Performs reliably under high thermal and mechanical stress.
  • Improved Efficiency: Corrugated fins enhance heat transfer efficiency, reducing energy consumption.
  • Corrosion Resistance: Suitable for aggressive and high-moisture environments, ensuring durability.
  • Cost-Effective: Reduces operational costs through better thermal efficiency and longevity.
  • Customizable: Tailored to meet specific operational requirements in terms of size, corrugation pattern, and material grade.





ASME SA312 / ASTM A312 TP310S Corrugated Fin Tube For Heat Exchanger 0
