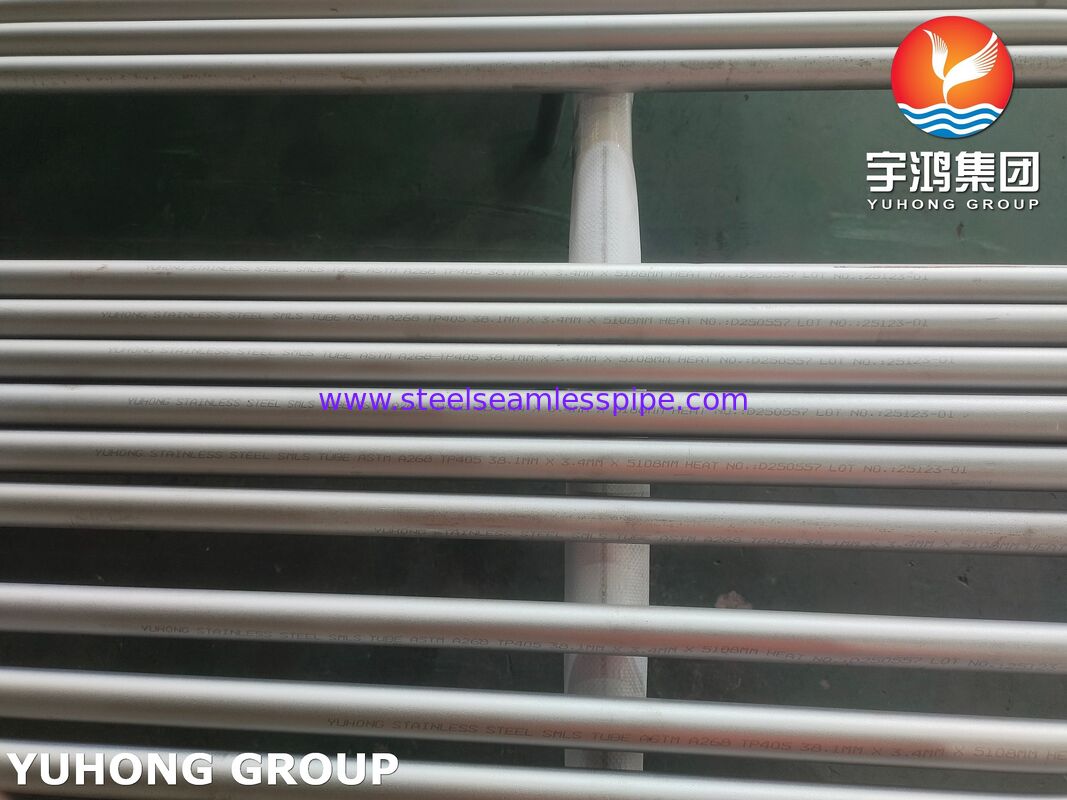

ASTM A268 TP405 Stainless Steel Seamless Tubes For Petrochemical Industry
ASTM A268 TP405 stainless steel tube is a ferritic and martensitic stainless steel tube for general corrosion-resistant and high-temperature service. TP405 grade corresponds to UNS S40500, and is a straight-chromium ferritic stainless steel grade with controlled aluminum content, which is designed to improve weldability and reduce brittleness compared to conventional 400-series stainless steels. Different from welded tubes, TP405 stainless steel seamless tubes are produced by hot rolling and cold drawing/rolling processes with no welding seam, delivering unified metallographic structure, superior pressure resistance, and consistent mechanical performance. SS405 grade is ferromagnetic, features moderate corrosion resistance, excellent high-temperature oxidation resistance, and good formability after annealing treatment. It is widely used in medium-temperature industrial systems requiring anti-oxidation, anti-corrosion and stable structural performance.
YUHONG GROUP specializes in TP405, TP410, TP430, etc. stainelss steel tubes complied with ASTM 268/ASME SA268 specification. The OD sizes range from 6.35mm to 152.4mm. As for length per tube, we generally provide 6 meters or cut into fixed length based on clients’ request.
Chemical Composition(%):
| C |
Si |
Mn |
P |
S |
Cr |
Ni |
Al |
| ≤0.08 |
≤1.00 |
≤1.00 |
≤0.040 |
≤0.030 |
11.50 – 14.50 |
≤0.50 |
0.10 – 0.30 |
Mechanical Properties:
| Performance Index |
Standard Value |
| Tensile Strength (Rm) |
≥415MPa |
| Yield Strength (Rp0.2) |
≥205MPa |
| Elongation(A) |
≥22% |
| Max Hardness (HRB) |
≤95HRB |
Key Features of ASTM A268 TP405 Seamless Tube:
- Excellent Weldability
- High-Temperature Oxidation Resistance
- Moderate Corrosion Resistance
- Stable Mechanical Performance
- Good Processability
- Ferromagnetic Property
- Cost-Effective
Main Applications:
- Power Generation Industry
- Petrochemical Industry
- HVAC & Energy Equipment
- Mechanical Manufacturing
- General Industrial Corrosion Protection
- Heat Exchangers & Condensers
- Furnace Components
- Automotive Exhaust Systems
Standard Delivery Condition:
- Heat Treatment State: Fully annealed (bright annealing or ordinary annealing), eliminating internal stress, optimizing toughness and weldability, no quenched or tempered state for conventional delivery.
- Surface State: Pickled and descaled, no oxide scale, no rust, no cracks or folding defects; customized polishing/brushing available.
- End Treatment: Tube ends flat cut and deburred to remove burrs, convenient for on-site welding and assembly.
- Packaging: Waterproof paper wrapping + steel strip bundling + plastic pipe cap protection; plywood box packaging for precision small-diameter tubes, suitable for long-distance sea and land transportation.
