ASTM A270 TP304 Sanitary Pipe Corrosion Resistant, Ultra-Smooth for Dairy, Food Processing, Beverage Equipment

Dettagli:

Luogo di origine:	Cina
Marca:	YUHONG
Certificazione:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO18001, ASME
Numero di modello:	TP304, SUS304, 1.4301, 08X18H10

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 pz
Prezzo:	Negoziabile
Imballaggi particolari:	Custodia in compensato/custodia in ferro/fascio con cappuccio in plastica
Tempi di consegna:	5-80 giorni
Termini di pagamento:	L/C, D/A, D/P, T/T
Capacità di alimentazione:	15000tons/mese

Contatto

Tutti i prodotti

Tubo senza cuciture in acciaio inossidabile (332)

Tubo senza saldatura di acciaio inossidabile (324)

Tubo di acciaio inossidabile del duplex (134)

Metropolitana di acciaio inossidabile del duplex (37)

Tubo ad ago (158)

Tubo di pinna (705)

scambiatori di calore (31)

tubo dello scambiatore di calore (459)

Fusoli di tubi per scambiatori di calore (49)

Piastra tubiera dello scambiatore di calore (125)

deflettore dello scambiatore di calore (39)

Aria di raffreddamento (11)

Contenitore a pressione (4)

tubo saldato di acciaio inossidabile (61)

Metropolitana saldata dell'acciaio inossidabile (132)

Tubo della lega di nichel (273)

Metropolitana della lega di nichel (103)

Metropolitana della lega di rame (250)

Metropolitana dell'acciaio legato (210)

Metropolitana di titanio (20)

tubo temprato luminoso (172)

Metropolitana di caldaia (152)

montaggio d'acciaio (862)

Flangia d'acciaio (660)

Altri (406)

Parti di rivestimento (8)

Descrizione di prodotto dettagliata

NDT:	PROVA DEL FLUSSO TURBOLENTO, PROVA IDROSTATICA, PROVA ULTRASONICA	Standard:	ASTM A270
Materiale:	TP304, SUS304, 1.4301, 08X18H10	OD:	1/2" (12,7 mm), 5/8" (15,88 mm), 3/4" (19,05 mm), 1" (25,4 mm), 1-1/4" (31,75 mm), 1-1/2 "(38,1 mm)
Spessore della parete:	22 BWG (0,71 mm), 20 BWG (0,89 mm), 18 BWG (1,24 mm), 16 BWG (1,65 mm), 14 BWG (2,11 mm), 12 BWG (2,	Superficie:	ricottura
Evidenziare:	ASTM A270 TP304 sanitary pipe , corrosion resistant stainless steel pipe , ultra-smooth food processing tubing

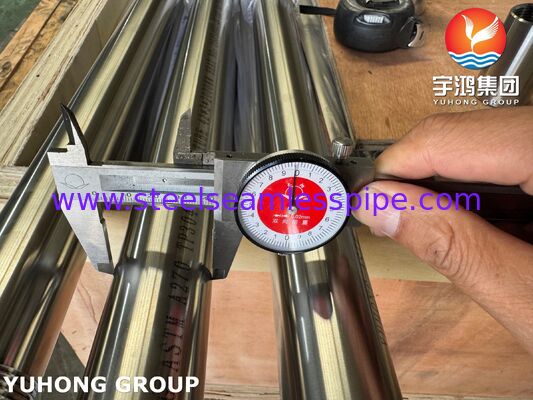

ASTM A270 TP304 Sanitary Pipe Corrosion Resistant, Ultra-Smooth for Dairy, Food Processing, Beverage Equipment

ASTM A270 TP304 austenitic stainless steel seamless pipe conforms to the American Society for Testing and Materials (ASTM) A270/A270M standards. It is an 18-8 type stainless steel, with a seamless structure achieved through hot rolling/cold drawing, resulting in a weld-free, high-pressure-resistant, and high-strength finish.

The pipe ends are precision CNC threaded, ensuring high accuracy and concentricity. They can be directly and quickly screwed onto standard fittings, valves, and connectors, achieving a tight seal without welding. The pipes are replaceable, leak-proof, and pressure-resistant.

TP304 material offers excellent corrosion resistance, is hygienic and non-toxic, easy to clean, and has a smooth inner wall. It meets 3-A and FDA hygiene requirements, is resistant to high-temperature steam sterilization, and is compatible with CIP/SIP cleanroom systems.

Widely used in food and beverage, pharmaceutical, bioengineering, clean fluid, water supply and drainage, and chemical piping industries, it is an ideal pipe material for sanitary and industrial-grade threaded connections.

Chemical Composition
Element	Composition (wt%)
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.00
Silicon (Si)	≤ 1.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Chromium (Cr)	18.0 – 20.0
Nickel (Ni)	8.0 – 11.0
Iron (Fe)	Balance

Mechanical Properties
Property	Minimum Requirement
Tensile Strength	≥ 515 MPa (75 ksi)
Yield Strength (0.2% offset)	≥ 205 MPa (30 ksi)
Elongation (in 2 in / 50 mm)	≥ 35%
Hardness (Rockwell B)	≤ 90 HRB

Application

Food and Beverage, Dairy Processing, Beverage Production
Water Systems: Primarily used for high-purity and injectable water.
Process and Production: Used in aseptic filling lines, bioreactors, pharmaceutical transfer systems, and fermentation systems; its smooth inner walls prevent material residue and cross-contamination.
Cosmetics and Fine Chemicals: Used in the production and delivery pipelines of high-end skincare products, toners, lotions, etc.
Process Piping: Used in oil refining, fertilizer, papermaking, and petrochemical industries requiring low corrosivity fluids.
Other General Industries, General Fluid Transportation: Used for tap water, chloride-free water and gas, cooling water circulation systems, and low-pressure steam pipelines.
Manufacturing and System Components: Used in hydraulic systems and heat exchanger tube bundles.
